Access Control

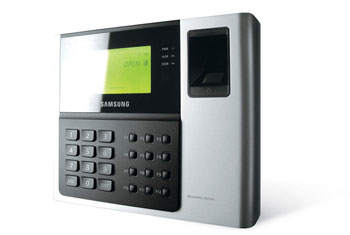

SSA-S3010/S3020/S3040 SSA-S3011/S3021/S3041
  • 125KHz Proximity / 13.56MHz Contact-less Smart Card, PIN and Fingerprint Recognition Access Controller
  • Dual Function for Access Control and Time & Attendance
  • 1:1 Verification and 1:N Identification storable 2 Fingerprint Templates
  • Fingerprint quality display
  • Fingerprint Users :
    - SSA-S3010/S3011 : 1,000
    - SSA-S3020/S3021 : 2,000
    - SSA-S3040/S3041 : 4,000
  • 10,000 / 20,000 ID Users, 20,000 / 10,000 Event Buffers (Selectable)
  • Up to 10 Master IDs Registration
  • Operating Mode selectable by Individual ID
  • 4 Level Door Open Time Setting by Individual ID
  • Time Schedules Setting by Individual ID,
    Input Port,Output Port and Reader Mode
  • Network Communication via RS232, RS485 and built-in TCP/ IP
  • 4 Input, 4 Output (2 Relay output)
  • 26bit / 34bit Wiegand Output
  • Input Cut-off Check
  • User Name Display on LCD
  • ARM/DISARM Function
  • 2 Men Operation Mode / Duress Alarm Function
  • Graphic LCD of Multi Languages Display
